The MPG A1000G PCIE5 power supply is designed to be ready for high performing future graphics cards thanks to its ATX 3.0 and PCIe 5.0 compatibility. By providing efficient and reliable power thanks to its 80 PLUS Gold-certified efficiency and 100% Japanese 105° C capacitors, easily build out your system with its fully modular design. Flat cables also mean less cable clutter and better airflow. Game with no worries and no adapters giving you a peace of mind with the MPG A1000G PCIE5 power supply.
0% RPM Mode
The 0 RPM fan mode can stop the fan’s operation when TDP is below 40% to let you enjoy gaming in silence.
100% Japanese 105° C capacitors
Aiming for unwavering product quality and performance stability, the MPG A1000G PCIE5 power supply comes with solid 100% Japanese 105° C capacitors.
Extensive connectivity
By offering a wide range of connectivity options, the MPG A1000G PCIE5 power supply guarantees extensive hardware support. Connect multiple hard drives, SSDs, graphics cards and other components to satisfy your needs.
Specifications
The powerful internals of the MPG A1000G PCIE5 power supply translate into impressive product specifications, providing the system with plenty of power for the latest and fastest computer components.
ATX 3.0 Compatible
The MPG A1000G PCIE5 can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.
Native PCIe 5.0 Ready
With the native 16 PIN (12VHPWR) PCIe connector, the MPG A1000G PCIE5 is ready for all high performing future graphics cards. There is no need for an adapter as long you have this connector.
The 80 PLUS Gold certification
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
Fully modular design
Organizing cables is often the most bothersome part of building a PC. With the MPG A1000G's fully modular design, significantly reduce cable clutter and simplify the system's overall build by only using the cables you need.

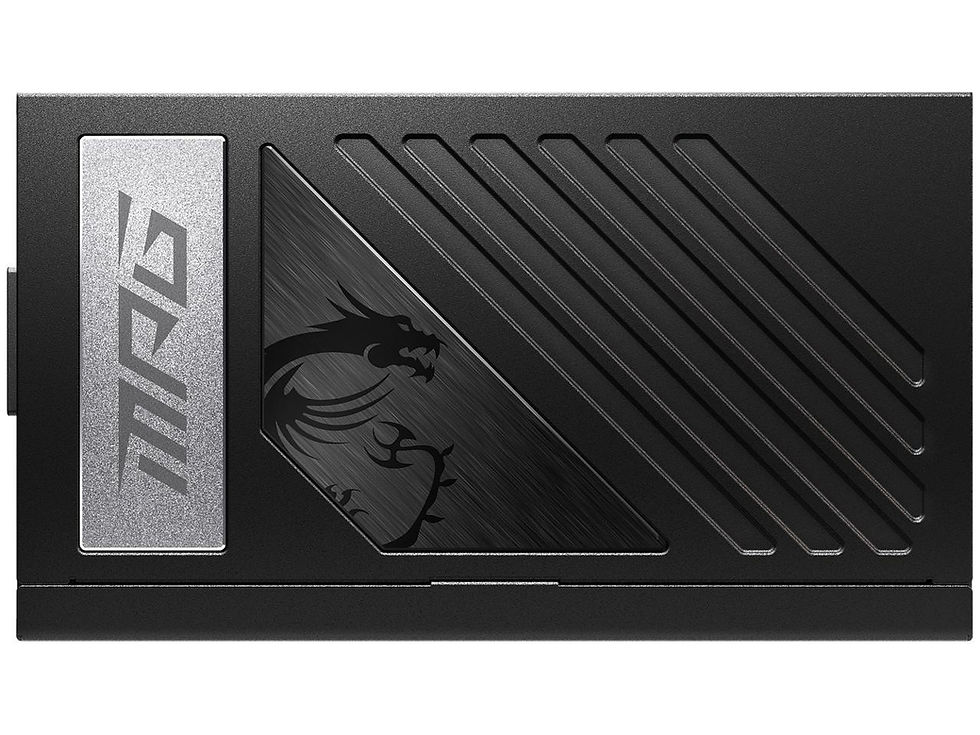

MSI - MPG A1000G PCIE 5.0, 80 GOLD Full Modular Gaming PSU
- 80 PLUS Gold Certification
- PCIe 5.0 and ATX 3.0 Compatible
- 100% Japanese Electrolytic capacitor
- Full Modular design
- Active PFC design
- Industrial level protection with OCP,OVP,OPP,OTP, SCP,UVP
- DC-DC Module Design
- Flat Cables
- Single Rail Design
- Fan 0 RPM Mode
Color Black Type ATX / ATX (ATX 3.0 Compatible) / ATX12V Maximum Power 1000 W Fans 1 x 135 mm Fluid Dynamic Bearing Fan PFC Active Main Connector 24Pin +12V Rails Single PCI-Express Connector 6 x 6+2-Pin, 1 x 16-Pin SATA Power Connector 12 Max PSU Length 150 mm Modular Full Modular Efficiency > 90% Energy-Efficient 80 PLUS GOLD Certified PSU Noise Level Cybenetics Standard ++ Protection OCP, OVP, OPP, OTP, SCP, UVP Input Voltage 100 - 240 V Input Frequency Range 50/60 Hz Output +5V@22A, +3.3V@22A, +12V@83.5A, -12V@0.3A, +5VSB@3A Connectors 1 x ATX (24 PIN)
2 x EPS (4+4 PIN)
1 x PCI-E 5.0 (16 PIN) (600W)
6 x PCI-E (6+2 PIN)
8 x SATA (15 PIN)
4 x MOLEX (4 PIN)
1 x FDD (4 PIN)Cable Spec 1 x ATX Cable (600mm)
2 x EPS (8 PIN to 4+4 PIN) Cable (700mm)
2 x PCIe (8 PIN to 6+2 PIN) Cable (600mm)
1 x PCIe (16 PIN to 16 PIN) Cable (600mm)
1 x PCIe (16 PIN to 6+2 PIN) Cable (600mm)
3 x SATA Sleeved Cable (500+150+150+150mm)
1 x MOLEX/FDD Sleeved Cable (500+150+150+150+150mm)
